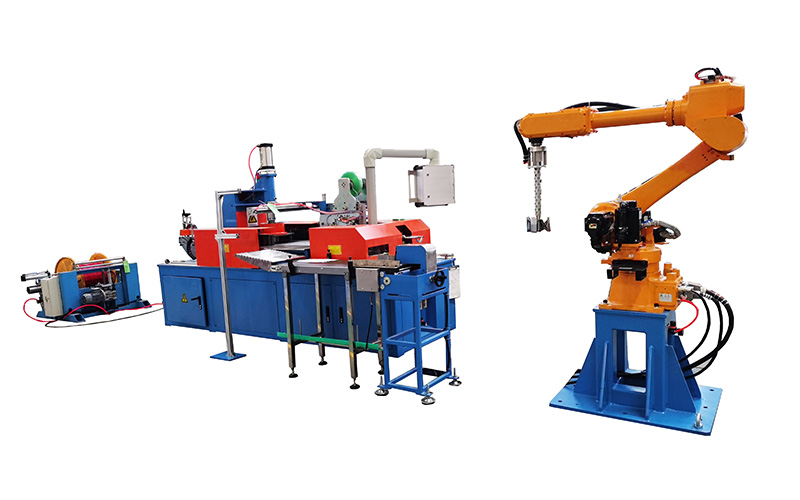

Automatic Wire Coiling Machine

Product details

Automatic Wire Coiling Machine:

1. PLC & HMI control program are used for automatic operation.

2. Wire will be coiled and packaged one by one, production with high speed.

3. It has auto adjust type coil-holding arm, without manual adjustments.
4. Parameters can be set on the control program with English.

5. With auto labeling machine, which do not need label by manual, more safe and convenience.

6. Can connect with auto stacking system & auto pallet stacking system.

7. When problem come out, the machine can auto detect the mistaked, and send message to warn the operator.
8. Cable coil OD and coil cutting length can be adjustable according to the setting parameter.
9. Cable inner Dia. can be changed according required.

10. Film Wrapping Tension can be changed as setting.

11. Cable Coil Wrapping Film material PP/PE/PVC/stretch film....

Technical parameter:

Model	Coil Height (mm)	Outer Diameter (mm)	Inner Diameter (mm)	Wire Diameter (mm)	Rotating Speed (RPM)
C0836	40 - 80	180 - 360	120 - 200	0.8 - 6	1000
C1246	50 - 100	200 - 460	140 - 220	0.8 - 6	800
C1860	60 - 180	20 - 600	180 - 250	5 - 15	200
C2060	60 - 200	220 - 600	180 - 250	5 - 15	150
C2480	80 - 240	300 - 800	250 - 320	10 - 25	100

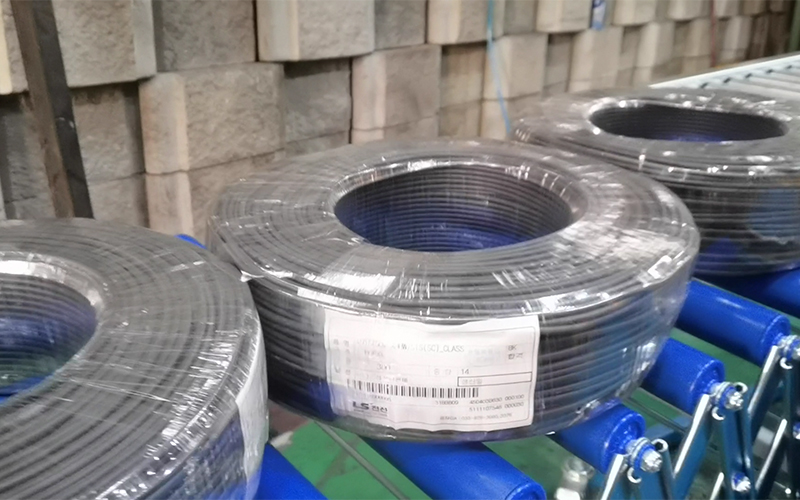

Customers' Feedback:
